Who says that stairlifts must be limited to just indoor staircases?
Technical DetailsFind out more
| Short seat post | 40-55° |
| Standard seat post | 29-55° |
| Tall seat post | 23-55° |
| Standard seat post | 36-55° |
| Tall seat post | 23-55° |
| Standard seat post | 27-55° |
| 10 metres | 394 inches |

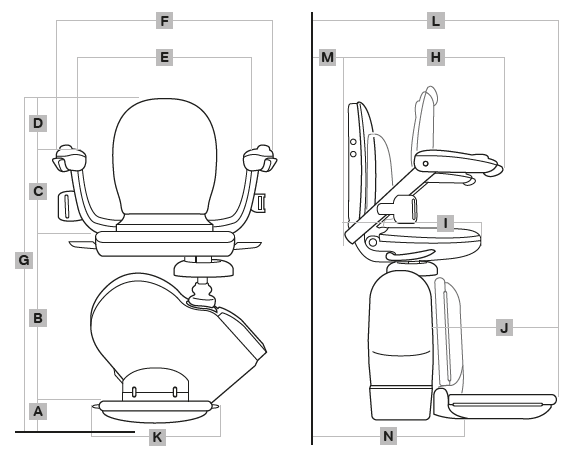

| Dimensions | mm | inch | |
|---|---|---|---|
| A | Floor to top of footrest | 95 | 3.75 |
| B | Top of footrest to top of seat (Short) (Tall) | 445 (410) (505) | 17.5 (16.25) (19.75) |
| C | Top of seat to top of arms | 250 | 9.75 |
| D | Top of arms to top of seat back | 190 | 17.5 |
| E | Width between armrests (Wide arm version) | 445 (495) | 17.5 (19.5) |
| F | Overall width | 605 | 23.75 |
| G | Overall height to floor | 980 | 38.5 |
| H | Length of arms from seat back | 470 | 18.5 |
| I | Length of seat base from seat back | 435 | 17 |
| J | Length of footrest | 325 | 12.75 |
| K | Width of footrest | 310 | 12.25 |
| L | Front of footrest to stringer | 570 | 22.5 |
| M | Back of seat to stringer | 13 | 0.5 |
| N | Folded width | 310 | 12.25 |
| O | Minimum width required to swivel at top | 670 | 26.25 |
| P | Distance from front of rail to stringer (Wide arm version) | 215 (240) | 8.5 (9.5) |
This stairlift is independently tested to comply with:
| Specifications | |
|---|---|
| Motor output speed | No greater than 0.15 metres per second |
| Method of drive | Rack and Pinion |
| Power Supply | 24v DC batteries |
| Motor Power | 0.25KW |
| Maximum capacity | 127kg |
| Maximum capacity HD version | 159kg |
| Power supply input range | 50-60Hz, 120-240V AC |
* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
Please let us know a few details about yourself, just so we know how to get in touch with you and if you need a stairlift in Georgia installed quickly.
An Acorn representative will contact you to arrange a home survey. This is free, takes just one hour and you'll receive a free no obligation quotation afterwards.
If you give the green light, an Acorn stairlift can be installed in Georgia within just a few days - or even the very next day if it's really urgent.
Acorn's aftercare services show that they never stop caring. Contact their dedicated help desk 365 days a year, and extended stairlift warranties are also available.
A few days is all what's required to complete the installation of the Acorn 130 Outdoor Stairlift once you have given the green light for the equipment to be fitted into your home.
Aftercare is a top priority at Acorn, as well as to us as a partner of America's leading stairlift manufacturer. We want to ensure you're always entirely happy with your Acorn 130 Outdoor Stairlift.
This is why Acorn's dedicated help desk is just a phone call away 365 days a year. Extended stairlift warranties are available too, which means technicians will attend your home in the unlikely event of a breakdown and also covers the cost of all callouts, parts and labor.
